XT90 Male & Female Connector Pair – 90A High Current Battery Connector

⚡ High-Current XT90 Connector Pair (Male & Female)

Power your high-current EV builds and custom battery packs with maximum safety and efficiency. Built to handle heavy loads, the XT90 connector pair features gold-plated brass contacts, anti-spark durability, and high-temp nylon insulation—delivering smooth power transmission for demanding electrical setups.

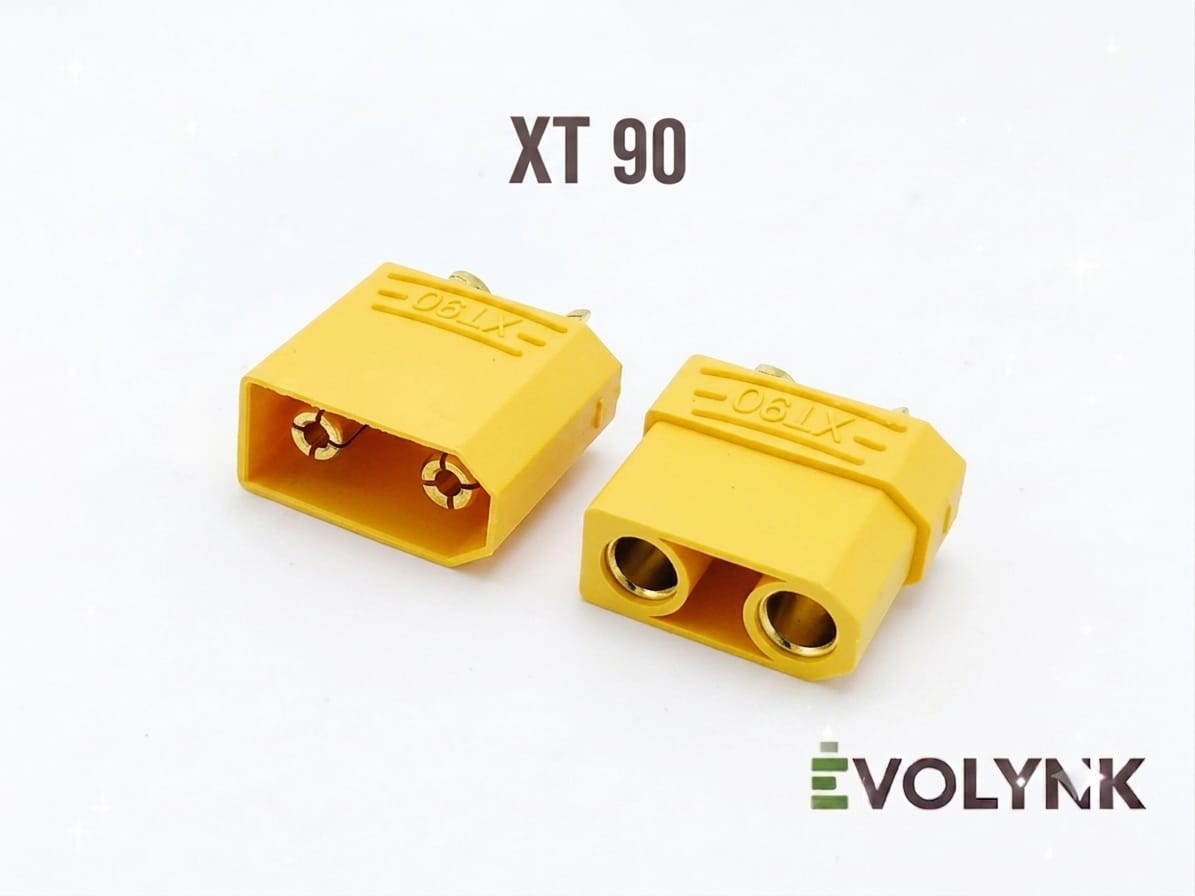

📦 What’s Included in the Package

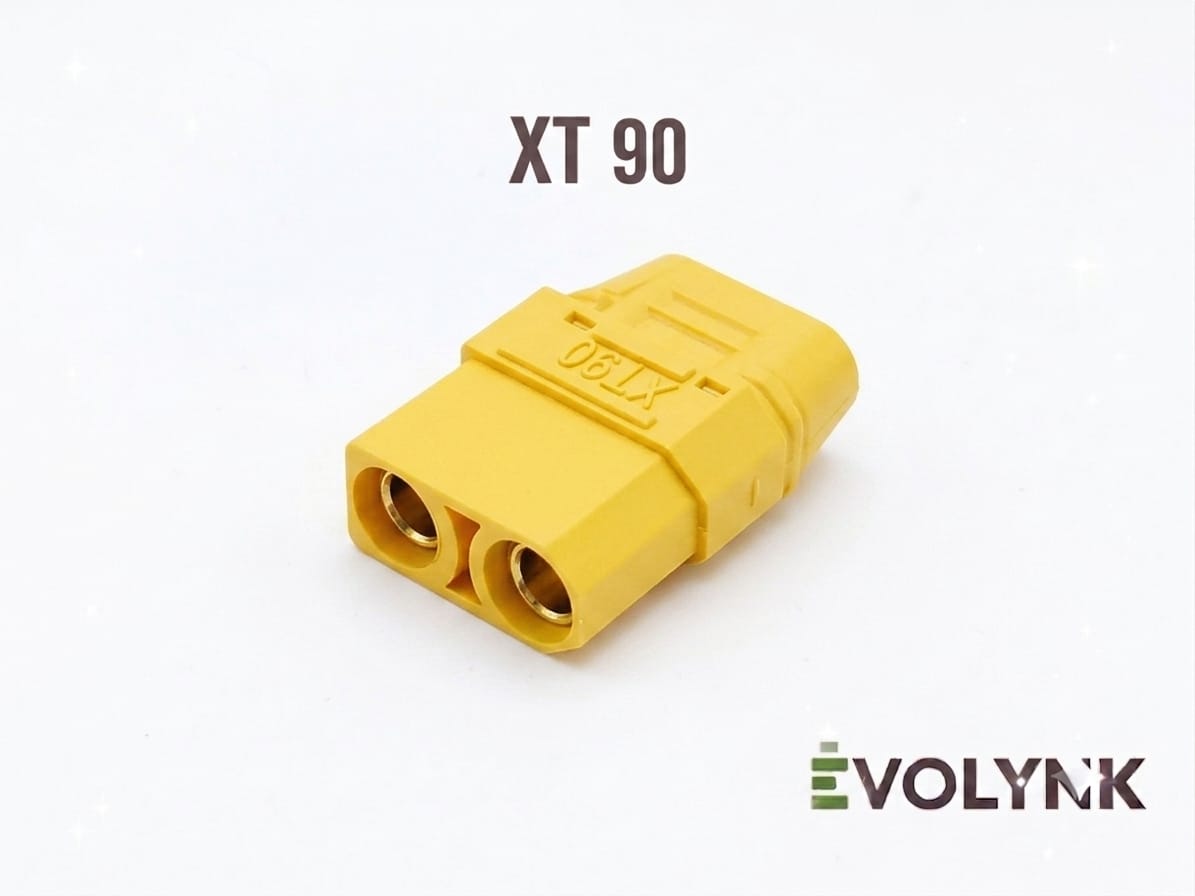

• 🔌 1x XT90 Female Connector

• 🔌 1x XT90 Male Connector


🌟 Key Highlights

• ⚡ High-Current 90A Class Design: Handles continuous heavy power draw without excessive heat or voltage drop.

• 🥇 Gold-Plated Brass Contacts: Delivers maximum conductivity, low internal resistance, and superior corrosion resistance.

• 🔒 Anti-Reverse Keyed Protection: Shaped housing structure ensures impossible reverse-polarity connections.

• 🛡️ Snap-On Insulation Caps: Includes protective rear sheaths to cover solder joints cleanly without needing excess heat-shrink tubing.

🛠️ Technical Specifications

• ⚡ Continuous Rating: 90A (Peak Burst: 120A)

• 🔋 Voltage Rating: 500V DC

• 🌡️ Housing Material: High-Temp Nylon / PA66

• 🥇 Contact Material: Gold-Plated Brass

• 📏 Compatible Wire Gauge: 8 AWG to 10 AWG

🚀 Recommended Applications

• 🔋 High-Capacity Lithium-Ion / LiFePO4 Battery Packs

• 🛵 EV Controllers, Hub Motors & Electric Scooter Upgrades

• 🛸 High-Power RC Vehicles, Heavy-Lift Drones & Robotics

• ☀️ DIY Solar Power Banks & High-Current DC Distribution

⚠️ Safety Note: Always double-check wire polarity (+ / -) before connecting to power. Use appropriate wire gauges (8–10 AWG recommended) and insulate properly.
